Conveyor belt dryer, conveyor belt roaster, belt conveyor furnace
1. Baked products are heated evenly, the internal and external temperature difference is small, no deformation, no discoloration;
2. baking speed stepless frequency control, high efficiency; dual temperature control heating, less energy waste, save power;
3. Small size, save space, save costs;
4. Can be used with the production line connection, one side feeding material, another side output material. Synchronous control, reduce bad products;
5. temperature can be set, high flexibility;
6. forced circulation wind device;
7. Product pre - standing time is short, less working time;
8. Use stepless temperature control system, stable and reliable product quality.
Widely used in food, electronics, chemical and other industries. Such as peanuts, cashew nuts, walnuts, pistachios, almonds, broad beans, soybeans,peas and other granular nuts, materials.
One layer belt dryer
Dimension : 6000*1100*1600mm
motor : 0.75kw
Heating power : 30kw
Gas heating type : 4-8kg/h
Power : 380v, 50hz
Roasting Capacity : 100-200kg/h
Drying capacity : 200-300kg/h
Two layer belt conveyor
Dimension : 6000*1600*2000mm
Power : 1.1kw
Heating power : 36-48kw
Gas heating type : 8-12kg/h
Power : 380v,50hz
Roast capacity : 200-300kg/h
Drying capacity : 500kg/h
Three layer belt conveyor
Dimension : 6000-8000mm*1600*2500mm
Power : 1.5kw
Heating power : 75-90kw
Gas heating type: 15-20kg/h
Voltage : 380v,50hz
Roasting capacity : 500-600kg/h
Drying capacity : 800-1000kg/h
|
|

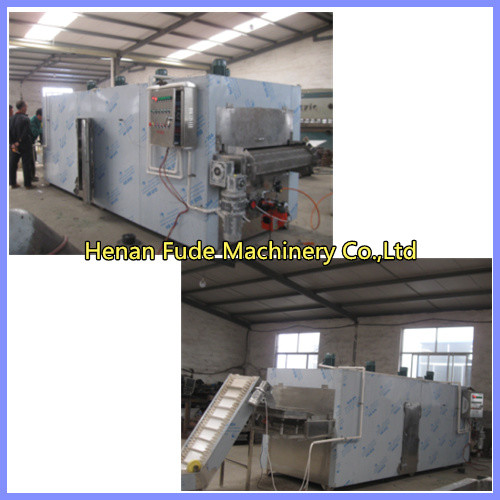

peanut roaster, peanut drying machine, almond roaster, pistachio drying machine Images
|
